- Performance: With anti blocking and anti burning protection function, with waterproof function.

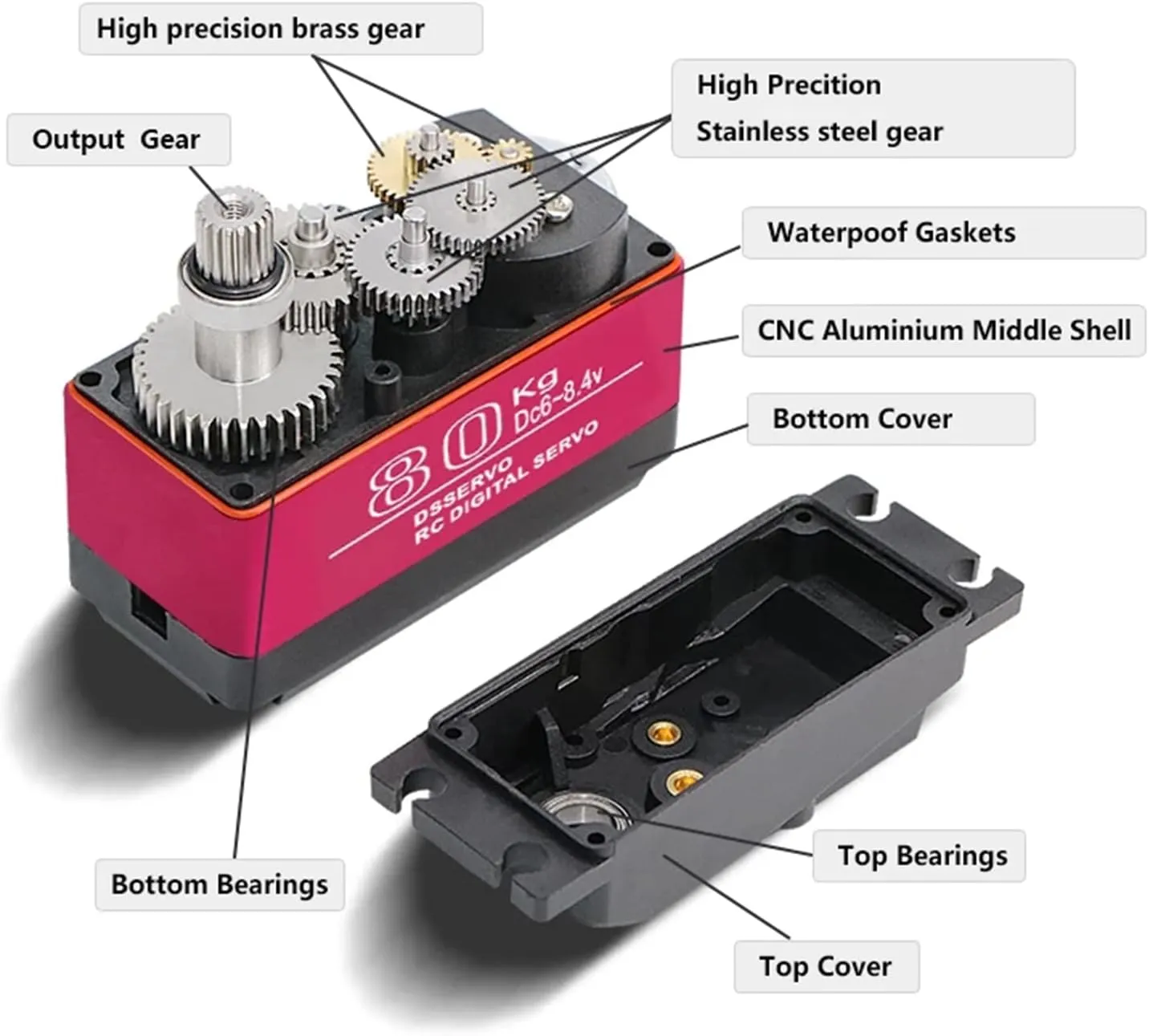

- CNC precision gear, it is more wear-resistant and not easy to break and sweep teeth.
- Metal gear high torque for RC car, crawler and robot.
- Great choice for university professors and students who are interested in developing software for robot parts.
- If there are any problems, please contact our store in time. We will give you a satisfactory solution.
Specifications:
Item: 80KG Digital Servo
Storage Temperature: -30 ℃ ~ 80 ℃
Operating Temperature: -15 ℃ ~ 70 ℃
Working Voltage: 6-8.4V
Size: 65 * 30 * 48mm
Gear Ratio: 357
Bearing: Double Bearing
Steering Gear Line: 300 - 5mm
Motor: 3-pole (s)
Waterproof Performance: IP67
Working Voltage: 6V 4mA 0.24sec/60 ° 85kg cm / 4.1a
7.4V 5MA 0.21SEC/60° 98kg-cm/5.4A
8.4V 6MA 0.19SEC/60° 105kg-cm/6.5A
Driving Mode: PWM
Pulse Width Range: 500-2500 USEC
Midpoint Position: 1500 usec
Control Angle: 270 ° (When 500 ~ 2500 USEC)
Control Accuracy: 3 USEC
Control Frequency: 50-330hz
Rotation Direction: Counter Clockwise (When 500 ~ 2500 USEC)
Package Information:
Package Size: 8.5*6.5*4cm
Package Weight: 160g
Gift Box Package
Packing List:

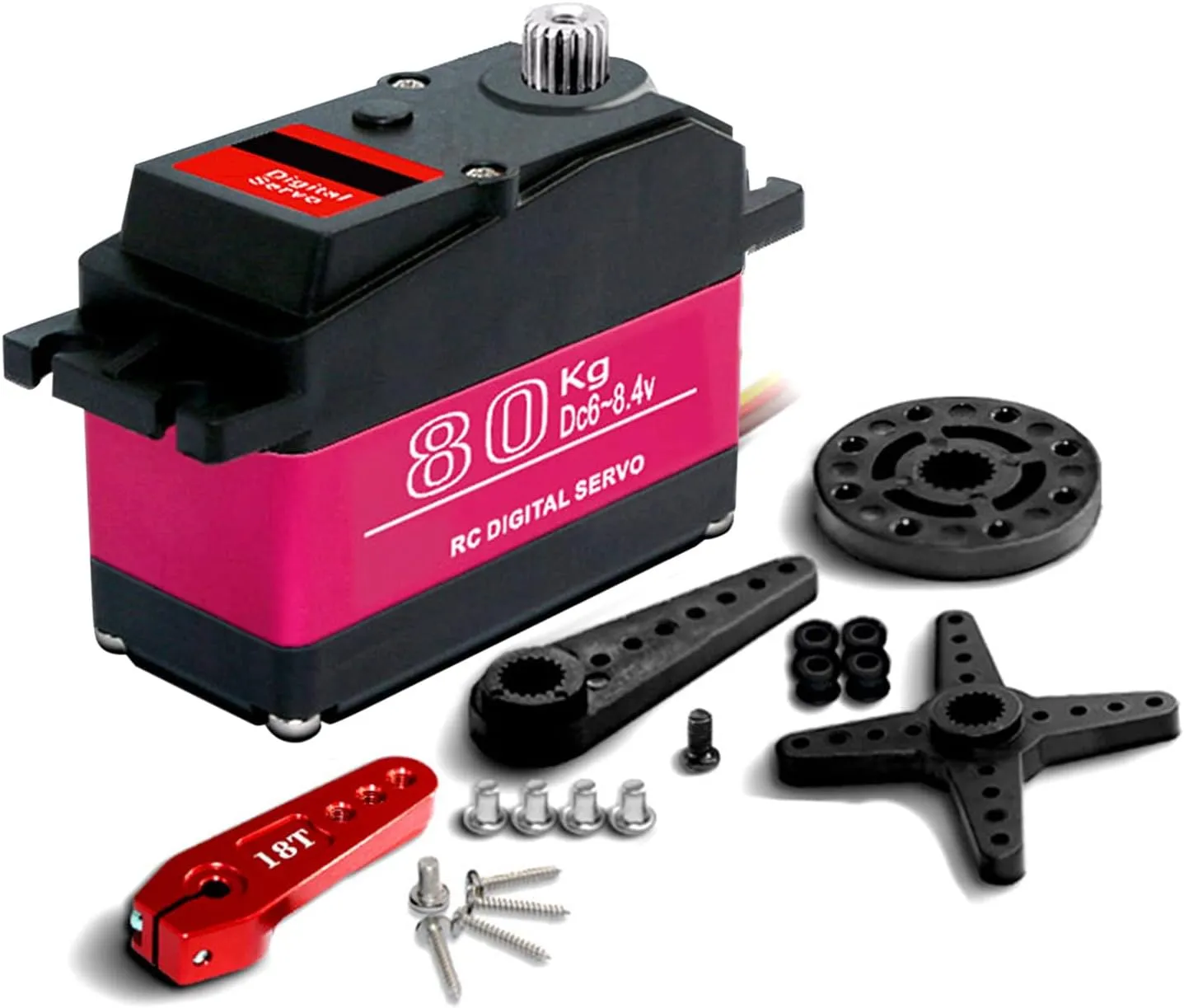

1* 80KG Digital Servo
1* 18T Servo Arm
