Motors

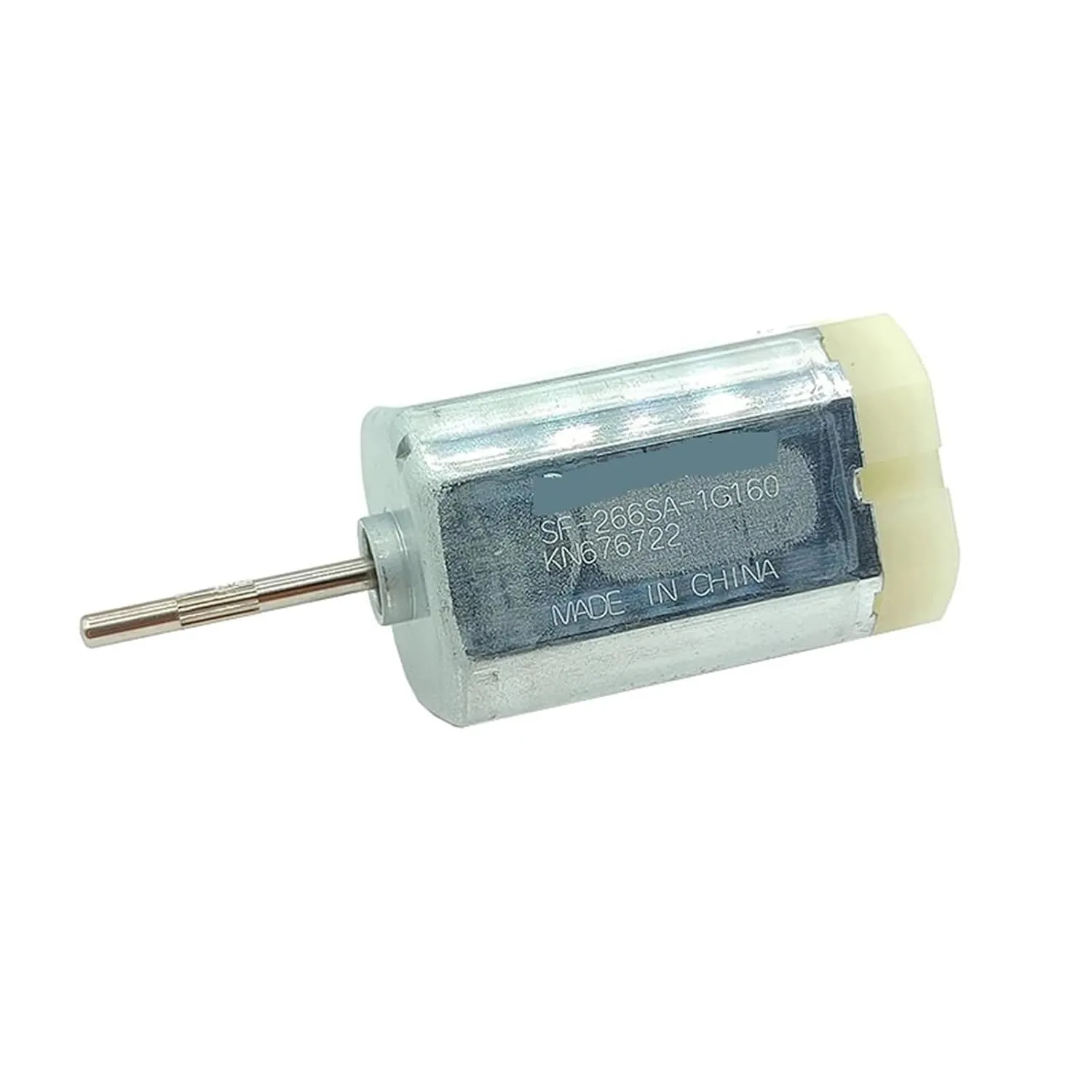

Model: SF-266SA-1G160
Motor size: 18.4mm*18.4mm (Square)
Motor length: 30.6mm (Not include output shaft)
Output shaft diameter: 2.0mm
Output shaft length: 18.5mm
Weight: 33g
Rated voltage: DC 13.5V
Suitable voltage: DC 12V-24V (@24V, it is easy heating)
Test data:
Voltage: 12.0V Current: 0.04A Stall current: 1.17A Speed: 7200RPM
Voltage: 13.5V Current: 0.04A Stall current: 1.20A Speed: 7900RPM
Voltage: 15.0V Current: 0.05A Stall current: 1.60A Speed: 9000RPM
Voltage: 18.0V Current: 0.07A Stall current: 1.86A Speed: 11000RPM
Voltage: 24.0V Current: 0.16A Stall current: 2.30A Speed: 14500RPM
Package List:
Motor x 1PCS
Usage : Home Appliance
Model Number : Mini 266 Motor
Construction : Permanent Magnet
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : SF-266SA-1G160
Motor size : 18.4mm*18.4mm
Motor height : 30.6mm
Output shaft diameter : 2.0mm
Suitable voltage : DC 12V-24V
Speed range : 7200RPM-14500RPM

• Package Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ May 26, 2025
• Manufacturer ‏ : ‎ CXYFQUUK
• Country of Origin ‏ : ‎ China
