Motors

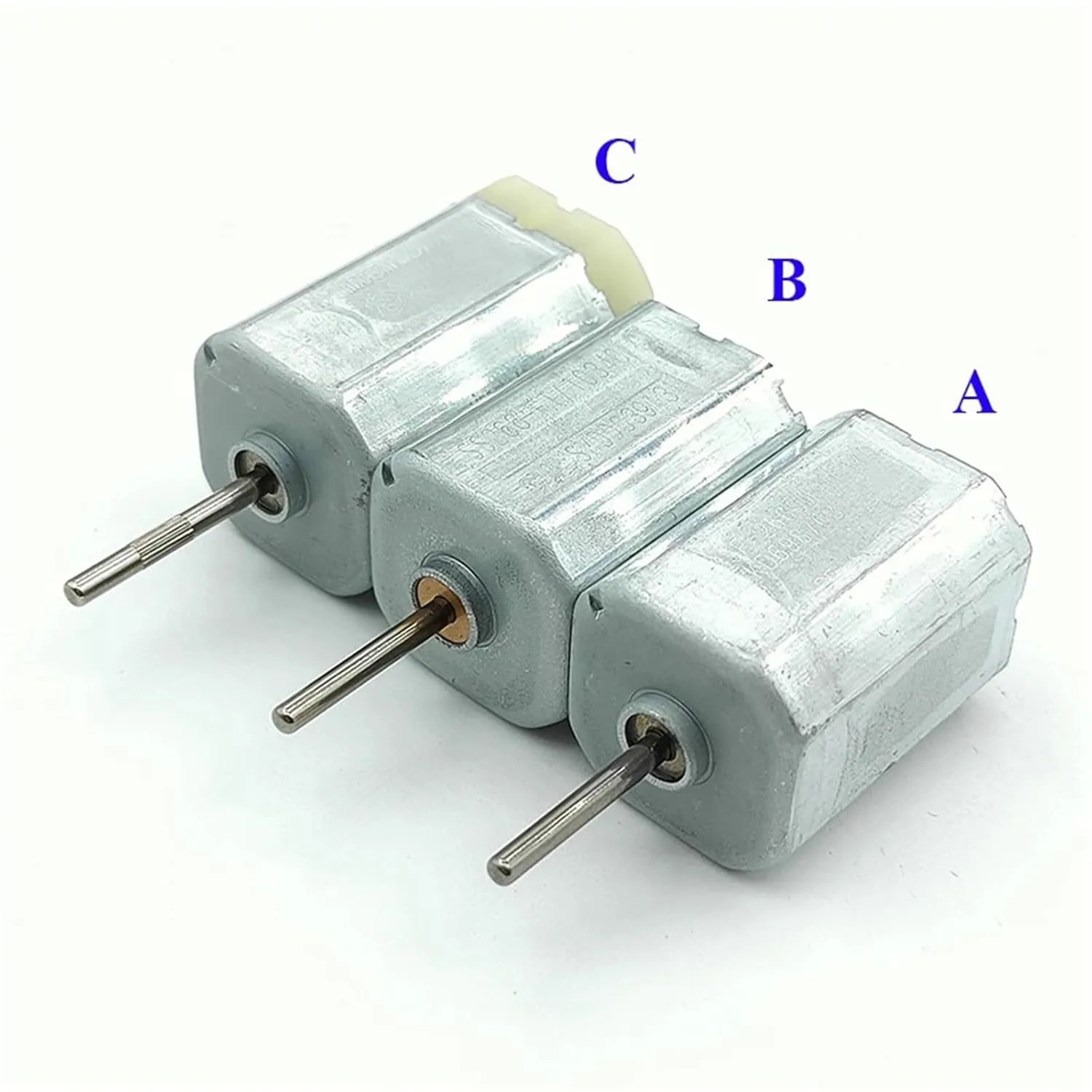

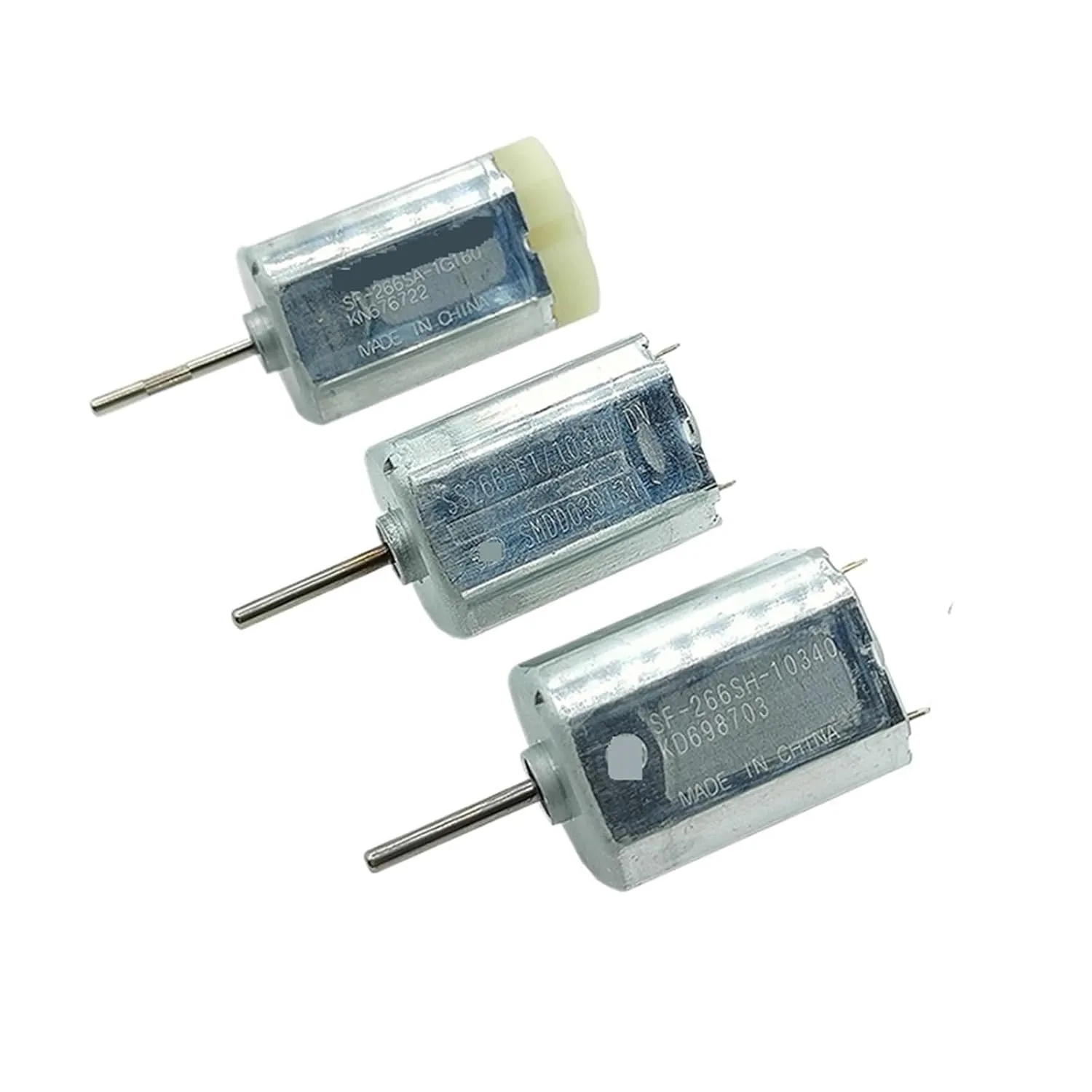

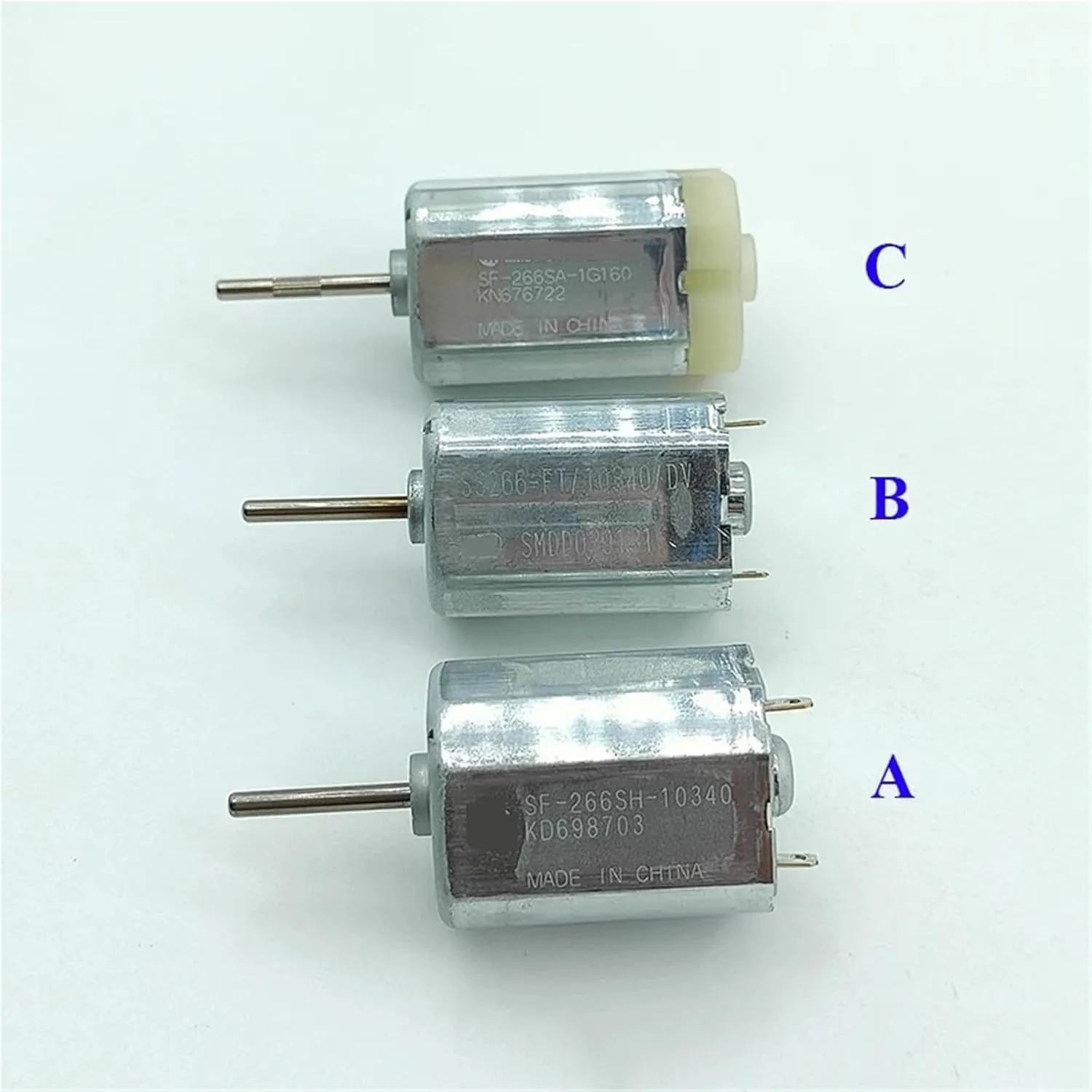

Model A: Mabuchi SF-266SH-10340
Model: SF-266SH-10340
Motor size: 25.6mm*18.2mm*18.2mm
Output shaft diameter: 2.0mm
Output shaft length: 16mm (include step height)
Voltage range: DC 6V-24V
Test data:
Voltage:6V No-load speed:1700RPM Current:8mA
Voltage:12V No-load speed:3500RPM Current:13mA
Voltage:24V No-load speed:6950RPM Current:90mA
Weight: 32g
Note: As for DC motor, the working voltage is higher, the greater the power, the higher the speed, the torque is greater, but the current is larger, relatively easy to heat, please buyers friends to decide the working voltage according to their own environment.
Application: Folding rear-view mirror for automobile etc.
Model B: SS266-FT-10340
Model: SS266-FT/10340
Motor size: 18.3mm*18.3mm*25.55mm
Output shaft diameter: 2.0mm
Output shaft length: 14.55mm
Weight: 32g
Suitable voltage: DC 6.0V-24.0V
Test data:
Voltage:6.0V No-load speed:1700RPM Current:10mA
Voltage:12.0V No-load speed:3500RPM Current:13mA
Voltage:24.0V No-load speed:6950RPM Current:90mA
Model C: SF-266SA-1G160
Model: SF-266SA-1G160
Motor size: 18.4mm*18.4mm (Square)
Motor length: 30.6mm (Not include output shaft)
Output shaft diameter: 2.0mm
Output shaft length: 18.5mm
Weight: 33g
Rated voltage: DC 13.5V
Suitable voltage: DC 12V-24V (@24V, it is easy heating)
Test data:
Voltage: 12.0V Current: 0.04A Stall current: 1.17A Speed: 7200RPM
Voltage: 13.5V Current: 0.04A Stall current: 1.20A Speed: 7900RPM
Voltage: 15.0V Current: 0.05A Stall current: 1.60A Speed: 9000RPM
Voltage: 18.0V Current: 0.07A Stall current: 1.86A Speed: 11000RPM
Voltage: 24.0V Current: 0.16A Stall current: 2.30A Speed: 14500RPM
Package List:
Motor x 1PCS
Usage : Home Appliance
Model Number : Mini 266 Motor
Construction : Permanent Magnet
Type : Motor
Feature : Explosion-proof
Commutation : Brush
